How to Set Up A Polycom Phone with Keypad

Updated 2 years ago by Joelle

Please note: You must first have a SIP phone number before configuring your Polycom phone. Please do not complete the following steps until you've done that.

Line Configuration

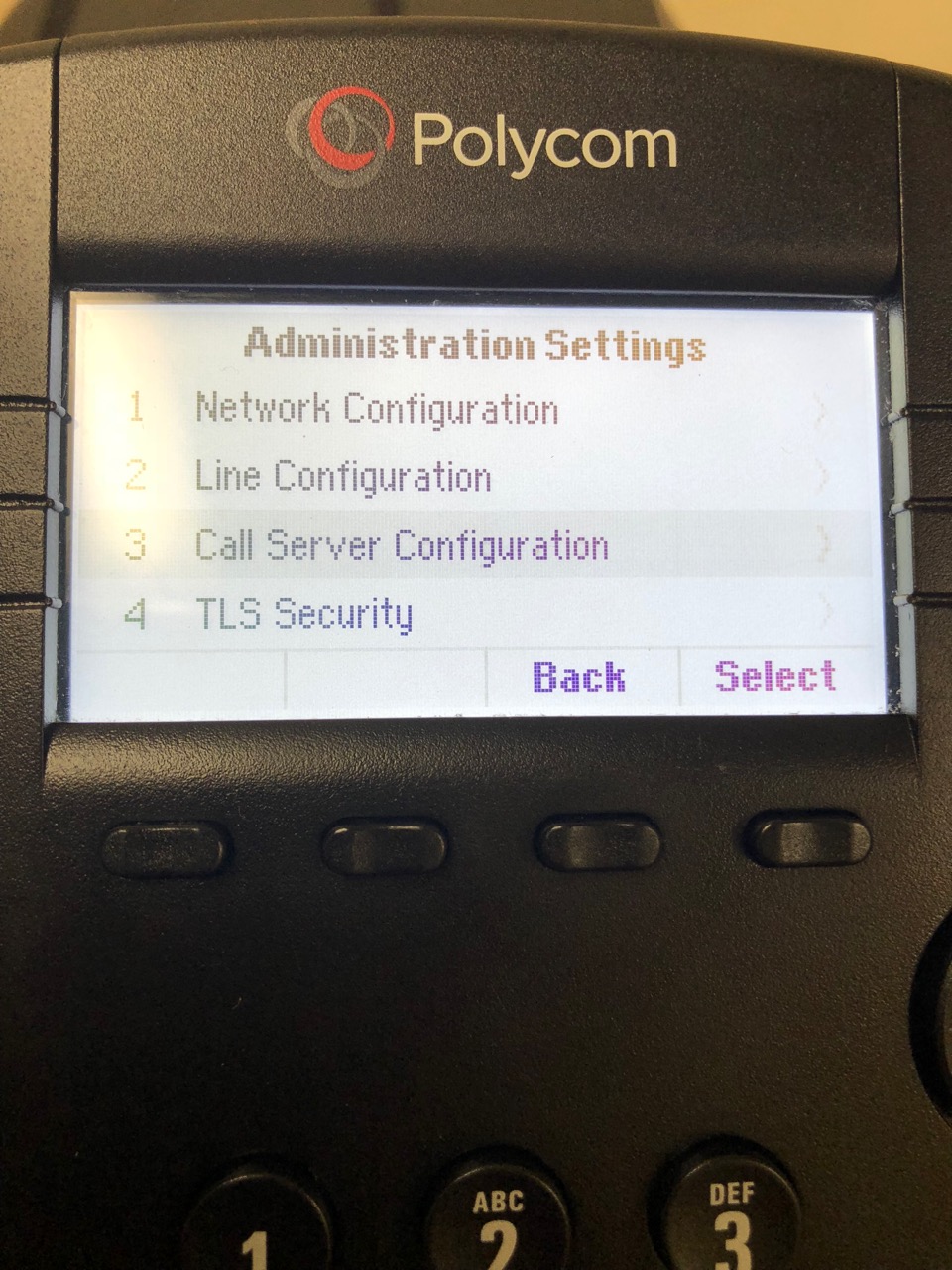

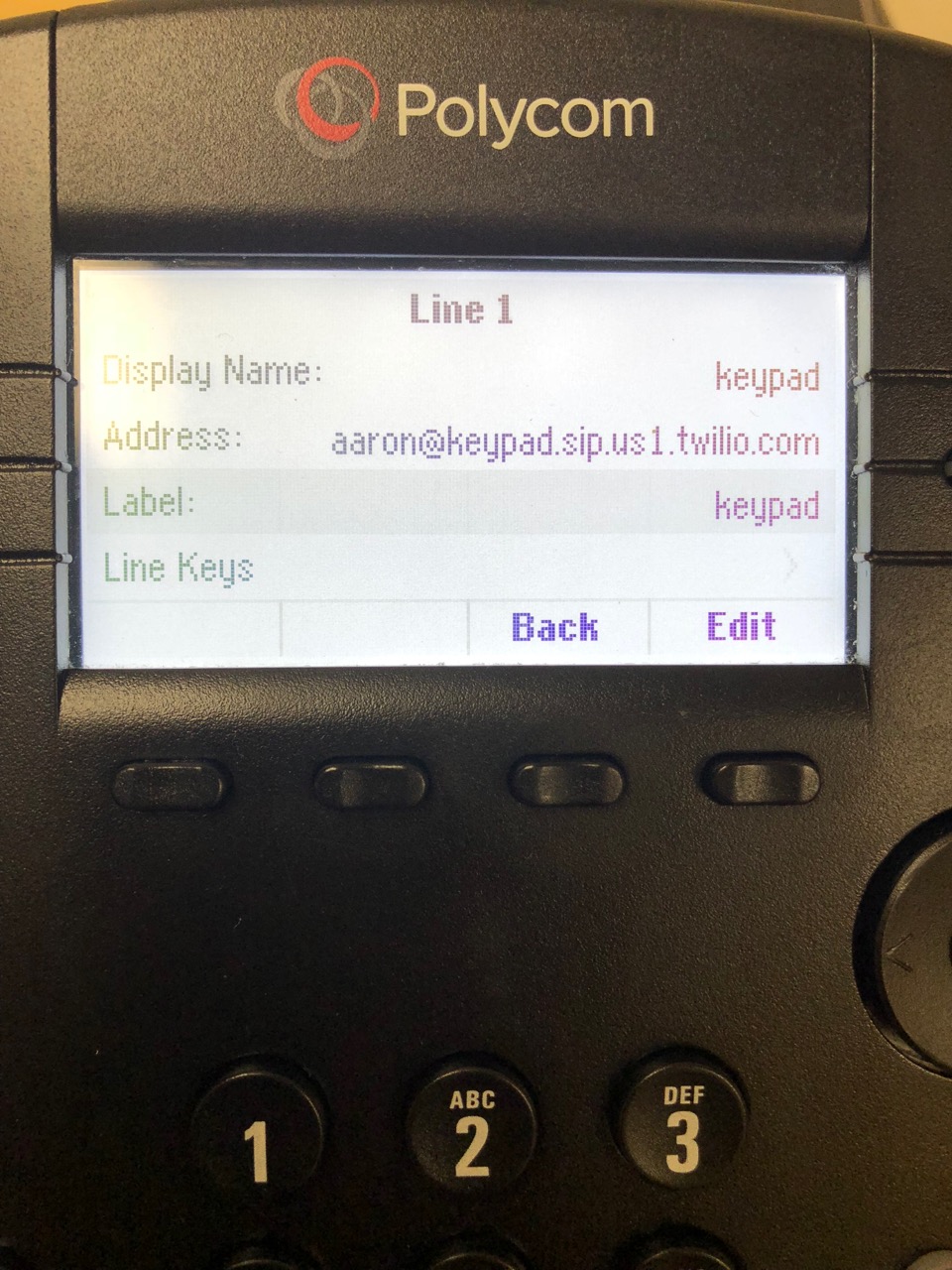

Administration Settings > Line Configuration > Line 1

Display Name: keypad


Label: keypad

Line 1 > Authentication

User Login Credentials: No


User ID: $your_username

Password: $your_password (Password is CASE SENSITIVE)

Line 1 > SIP Protocol

Enabled: Yes

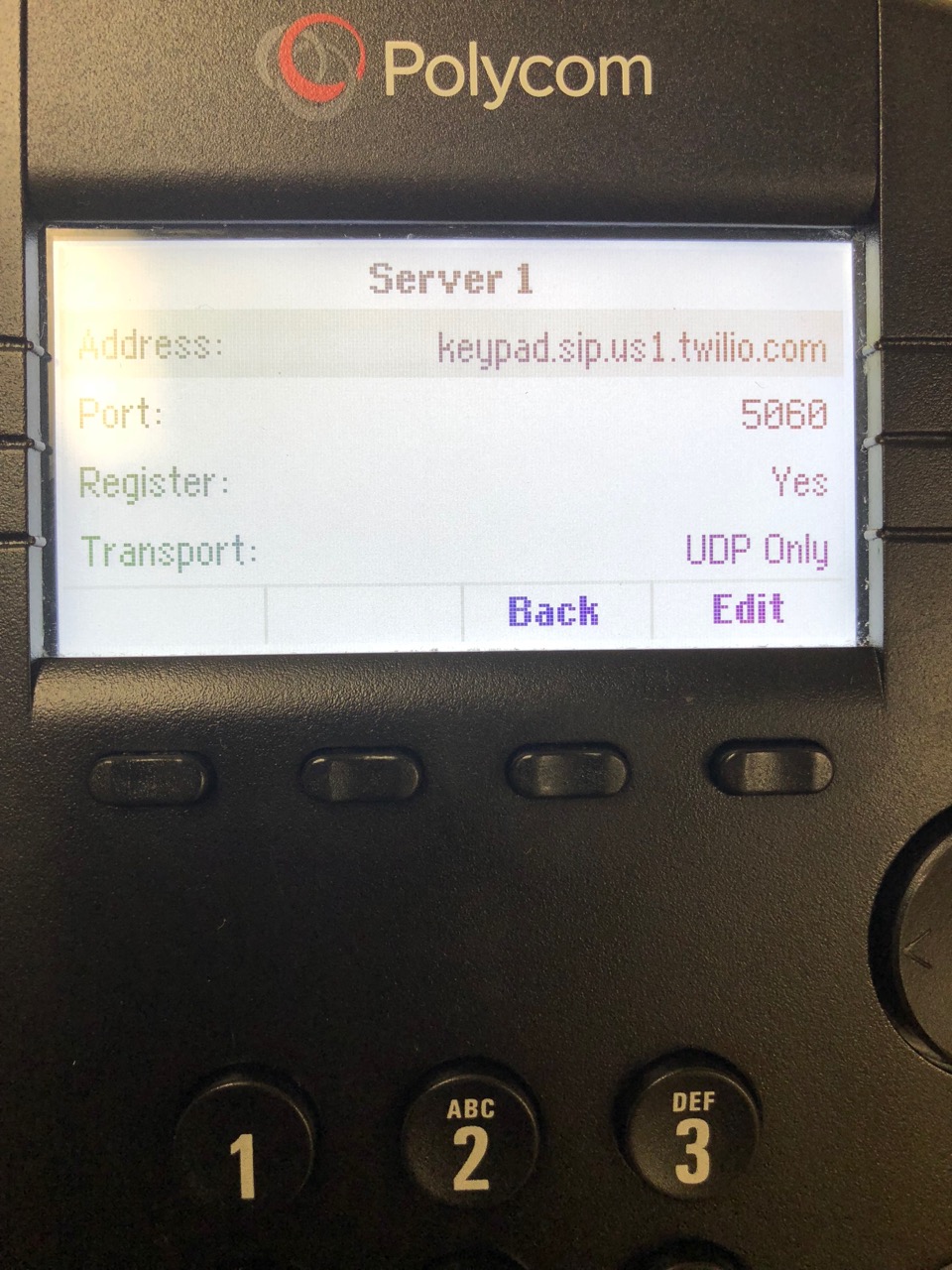

Line 1 > SIP Protocol > Server 1


Port: 5060

Register: Yes

Transport: UDP Only

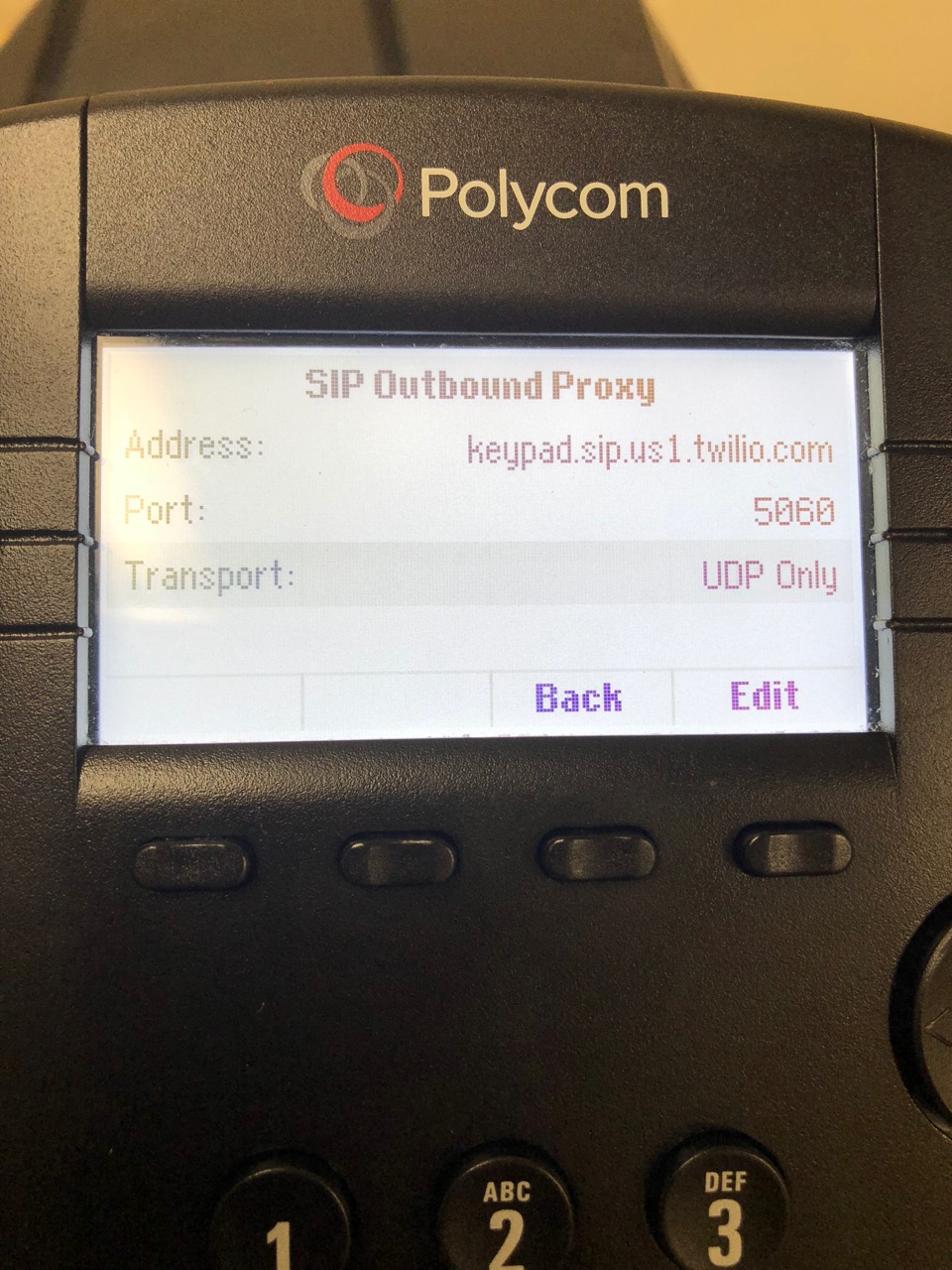

SIP Outbound Proxy

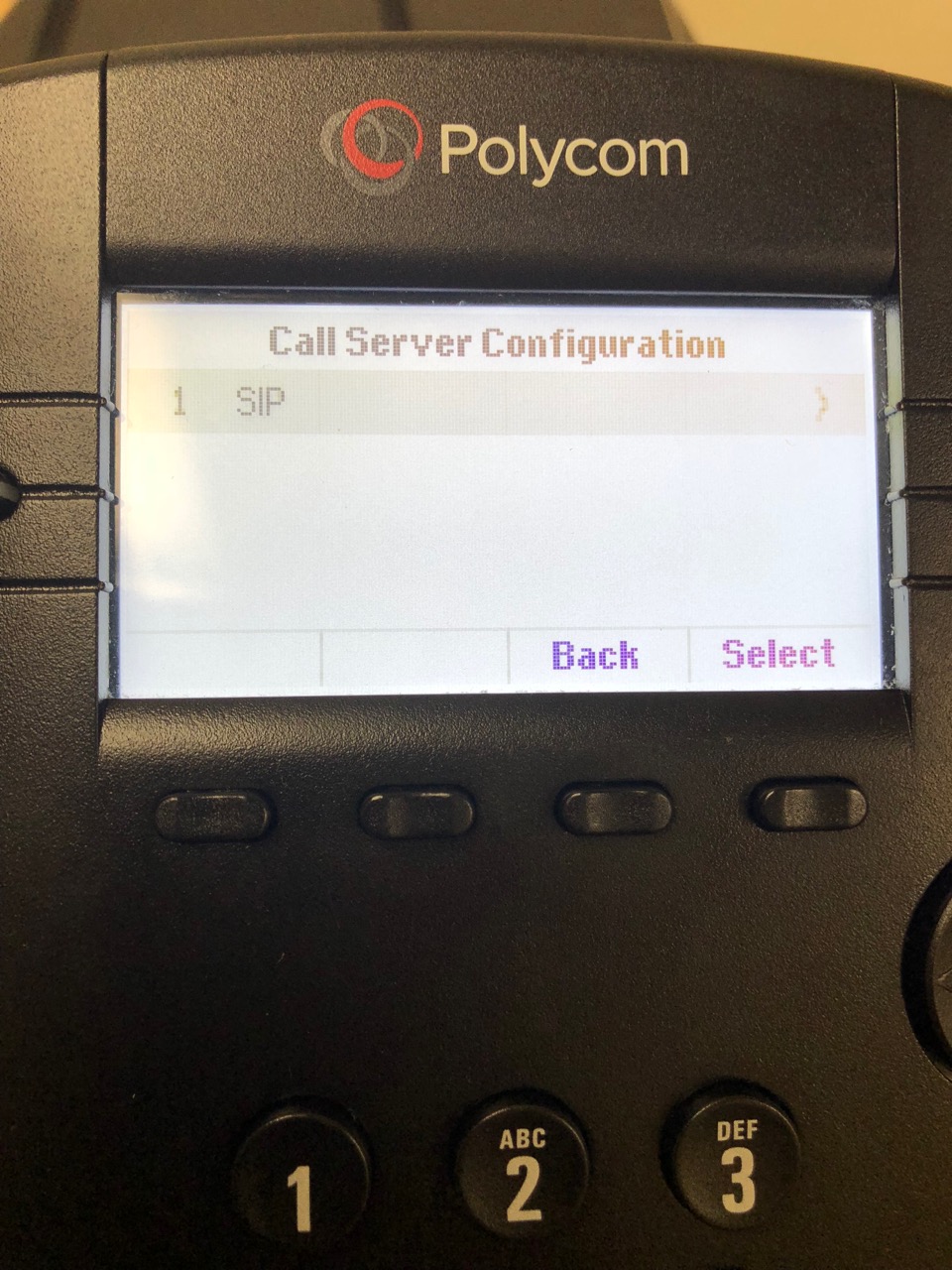

Administration Settings > Call Server Configuration > SIP > SIP Outbound Proxy


Port: 5060

Transport: UDP Only
